DS Series - Planetary Gear Heads

Lojer Components supply a high quality, dependable range of gear heads and motors. Coming from over 20 years of experience producing gear boxes, reducers, support units and slide shafts, these gear heads are typically used in robotic arms, machine tools and CNC equipment.

DS Series

download pdf


DS Series - Specifications

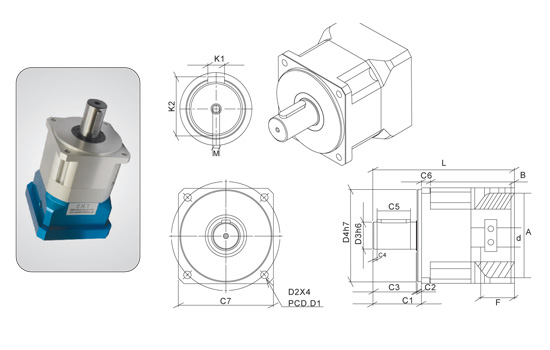

Dim DS060 DS070 DS090 DS120 DS150 DS180
D1 70 75 105 130 165 215
D2 5 5.5 6.8 9 11 13
sym1D3 16(12~16) 16(12~16) 20(16~22) 32(24~35) 42(38~45) 55(50~60)
D4 50 60 80 110 130 160
C1 35 33 54.5 58 72 107
C2 7 5 6 5 4 10
C3 27 27 48.5 51 67 83
C4 3 3 5 5 5 6
C5 20 20 25 40 45 180
C6 10 10 12 11 15 70
C7 60 68 94 114 142 25
L- L1 125 125 168 170 261 332
L - L2 147 147 195.5 198 313 414
M M5*0.8Px12 M5*0.8Px12 M6*P1.5x12 M8*P1.25x27 M12*1.75Px32 M14*1.75Px40
K1 5 5 6 10 12 14
K2 18 18 22.5 35.1 45 58.5
d ≤14 ≤14 ≤24 ≤28 ≤42 ≤55
ΔA 30~50 30~60 50~80 55~110 95~130 95~156
B 3.5 6 8 5 10 10
ΔF ≤30 ≤30 ≤40 ≤56 ≤85 ≤95
