DL Series - Planetary Gear Heads

Lojer Components supply a high quality, dependable range of gear heads and motors. Coming from over 20 years of experience producing gear boxes, reducers, support units and slide shafts, these gear heads are typically used in robotic arms, machine tools and CNC equipment.

DL Series

download pdf

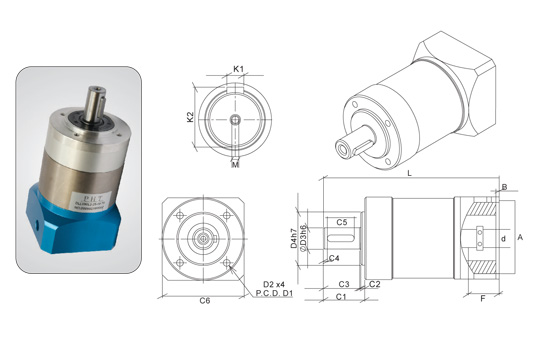

DL Series - Specifications

Dim DL060 DL090 DL120 DL150
D1 50 70 100 145
D2 5 6 8 12
sym1D3 16(12~16) 20(18~22) 32(24~32) 42(38~42)
D4 40 60 80 130
C1 31 55 58 73.5
C2 3 5 5 4
C3 27 49 52 67
C4 3 5 5 5
C5 20 25 40 45
C6 60 93 115 160
L- L1 115 172 170 261
L - L2 133 198 198 313
M M5*0.8P x 12 M6* P1.5 x 12 M8* P1.25 x 27 M12* 1.75P x 32
K1 5 6 10 12
K2 18 22.5 35.1 45
d ≤14 ≤24 ≤28 ≤42
ΔA 30~50 50~80 55~110 95~130
B 3.5 8 5 10
ΔF ≤30 ≤40 ≤56 ≤85
