DH Series - Planetary Gear Heads

Lojer Components supply a high quality, dependable range of gear heads and motors. Coming from over 20 years of experience producing gear boxes, reducers, support units and slide shafts, these gear heads are typically used in robotic arms, machine tools and CNC equipment.

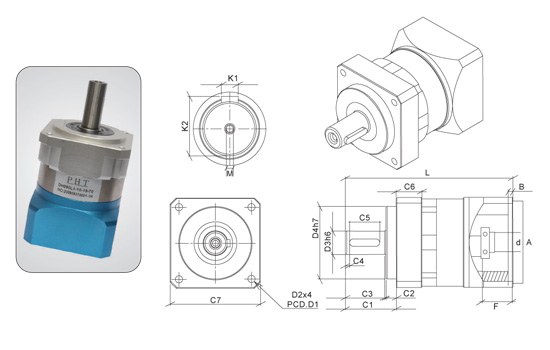

DH Series

download pdf


DH Series - Specifications

Dim DH060 DH090 DH120 DH150
D1 70 106 130 165
D2 5 6.8 9 11
sym1D3 16(12~16) 20(18~22) 32(24~35) 42(38~45)
D4 50 80 110 130
C1 35 55 58 73.5
C2 7 5 5 4
C3 27 49 52 67
C4 3 5 5 5
C5 20 25 40 45
C6 8 10 11 15
C7 62 95 114 142
L- L1 115 172 170 261
L - L2 133 198 198 313
M M5*0.8P x 12 M6* P1.5 x 12 M8* P1.25 x 27 M12* 1.75P x32
K1 5 6 10 12
K2 18 22.5 35.1 45
≤14 ≤24 ≤28 ≤42
ΔA 30~50 50~80 55~110 95~130
B 3.5 8 5 10
ΔF ≤30 ≤40 ≤56 ≤85
