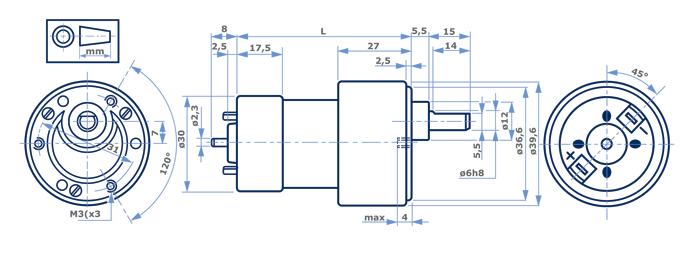

Technical Data - Series RH159 - Spur Gear Motor - Diameter 39.6mm
| Type | Nominal Voltage (V) |
L (mm) |
Ratio To: 1 |
Max Torque (Ncm) |
Speed No Load (rpm) |
Speed at Max Torque (rpm) |
Current No Load (mA) |
Current at Max Torque (mA) |
| RH159.12.30 RH159.24.30 |
12 24 |
64 | 29.75 | 15 | 110 | 70 | <60 <50 |
250 130 |
|
RH159.12.75 RH159.24.75 |
12 24 |
66.5 | 76.84 | 30 | 43 | 28 |
<60 <50 |
230 120 |
| RH159.12.100 RH159.24.100 |
12 24 |
66.5 | 94.37 | 40 | 35 | 22 | <60 <50 |
240 125 |
|
RH159.12.200 RH159.24.200 |
12 24 |
69 | 198.5 | 80 | 17 | 10 |
<60 <50 |
250 130 |
| RH159.12.250 RH159.24.250 |
12 24 |
69 | 243.8 | 100 | 14 | 8.5 | <60 <50 |
240 125 |
|
RH159.12.510 RH159.24.510 |
12 24 |
72 | 512.85 | 100 | 6.5 | 5 |
<60 <50 |
150 80 |
|
RH159.12.630 RH159.24.630 |
12 24 |
72 | 629.82 | 100 | 5 | 4.5 |
<60 <50 |
130 70 |
Typical values at ambient temperature +20°
Tolerance +/- 10%

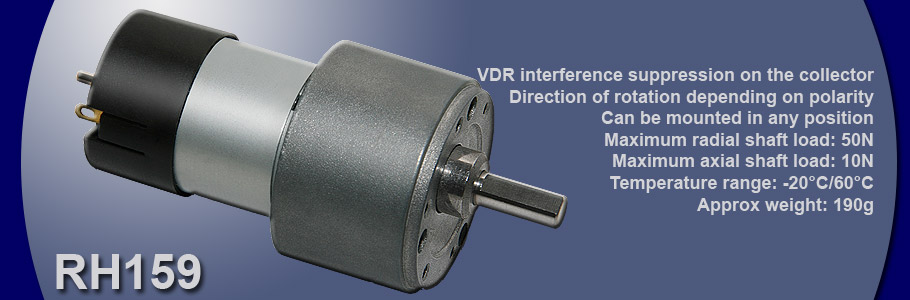

VDR interference suppression on the collector.
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 50N
Maximum axial shaft load: 10N
Temperature range: -20°C/60°C
Approx weight: 190g
