L149

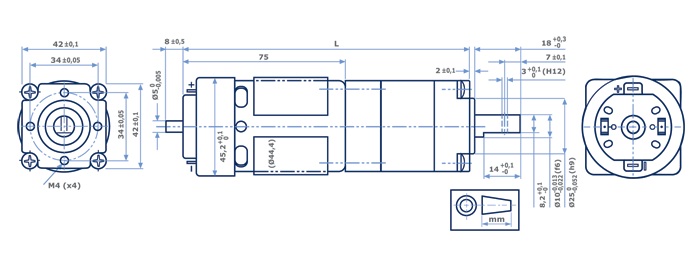

Technical Data - Series P205 - Planetary Gear Motor - Diameter 42mm ± 0.1

Type Nominal
Voltage
(V)		 L
(mm)		 Ratio
To: 1		 Max
Torque
(Ncm) 		 Speed
No Load
(rpm)		 Speed at
Max Torque
(rpm)		 Current
No Load
(A)		 Current at
Max Torque
(A)		 Input
Power
at Max
Torque
(W)
P205.12.4
P205.24.4		 12
24		 120.5 4 50 1024
1017		 625
640		 <0.7
<0.4		 5.45
2.70		 65.4
64.8
P205.12.6
E192.24.6		 12
24		 120.5 6.25 60 656
652		 459
470		 <0.7
<0.4		 4.20
2.15		 50.4
51.6
P205.12.16
P205.24.16		 12
24		 133 16 150 257
256		 178
186		 <0.7
<0.4		 4.50
2.20		 54.0
52.8
P205.12.25
P205.24.25		 12
24		 133 25 250 165
165		 110
116		 <0.7
<0.4		 4.44
2.30		 54.6
55.2
P205.12.39
P205.24.39		 12
24		 133 39.06 350 106
105		 75
77		 <0.7
<0.4		 4.20
2.10		 50.4
50.4
P205.12.64
P205.24.64		 12
24		 145.5 64 600 64
64		 41.5
45		 <0.7
<0.4		 4.80
2.40		 57.6
57.6
P205.12.100
P205.24.100		 12
24		 145.5 100 700 41.3
41.3		 30.3
32.4		 <0.7
<0.4		 3.60
1.75		 43.2
42.0
P205.12.156
P205.24.156		 12
24		 145.5 156.25 800 26.5
26.5		 21.3
22		 <0.7
<0.4		 2.85
1.45		 34.2
34.8
P205.12.244
P205.24.244		 12
24		 145.5 244.14 900 16.9
16.9		 14.9
14.9		 <0.7
<0.4		 2.20
1.10		 26.4
26.4
P205.12.400
P205.24.400		 12
24		 158 400 900 10.2
10.2		 9.4
9.4		 <0.7
<0.4		 1.65
0.85		 19.8
20.4
P205.12.625
P205.24.625		 12
24		 158 625 900 6.7
6.7		 6.3
6.3		 <0.7
<0.4		 1.25
0.65		 15.0
15.6

download pdfTypical values at ambient temperature +20°
Tolerance +/- 10%

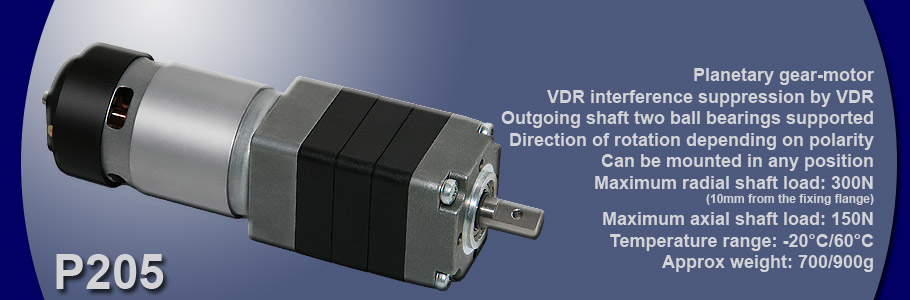

Planetary gear-motor
VDR interference suppression by VDR
Outgoing shaft two ball bearings supported
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 300N (10mm from the fixing flange)
Maximum axial shaft load: 150N
Temperature range: -20°C/60°C
Approx weight: 700/900g

L149
