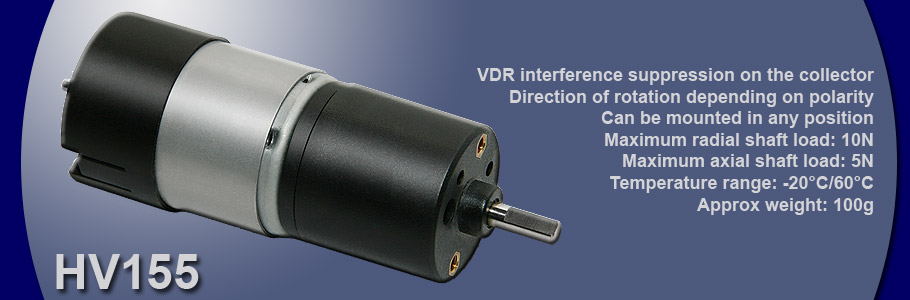

Technical Data - Series HV155 - Spur Gear Motor - Diameter 27mm

Type Nominal
Voltage
(V)

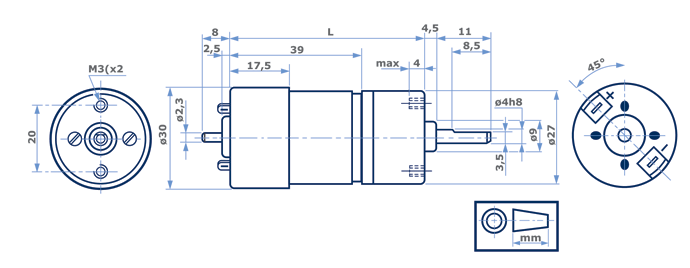

L
(mm)
Ratio
To: 1
Max
Torque
(Ncm)
Speed
No Load
(rpm)
Speed at
Max Torque
(rpm)
Current
No Load
(mA)
Current at
Max Torque
(mA)
HV155.12.10
HV155.24.10
12
24
62.5 10 5 660 460 <140
<70
620
300
HV155.12.21
HV155.24.21
12
24
62.5 20.8 10 315 235 <140
<70
600
285
HV155.12.43
HV155.24.43
12
24
67.5 43.3 18 155 115 <140
<70
580
280
HV155.12.90
HV155.24.90
12
24
67.5 90.3 25 75 62 <140
<70
440
215

download pdfTypical values at ambient temperature +20°
Tolerance +/- 10%

VDR interference suppression on the collector.
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 10N
Maximum axial shaft load: 5N
Temperature range: -20°C/60°C
Approx weight: 100g

L149
