L149

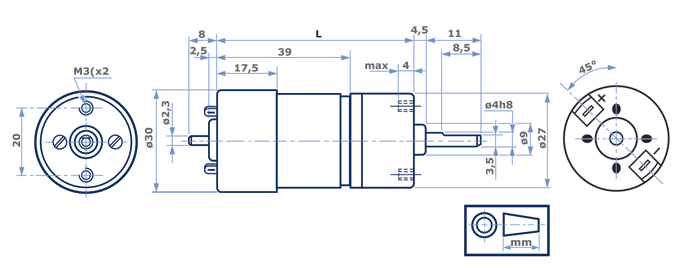

Technical Data - Series HL149 - Spur Gear Motor - Diameter 27mm

Type Nominal
Voltage
(V)
L
(mm)
Ratio
To: 1
Max
Torque
(Ncm)
Speed
No Load
(rpm)
Speed at
Max Torque
(rpm)
Current
No Load
(mA)
Current at
Max Torque
(mA)
HL149.12.10
HL149.24.10
12
24
57.5 10 4 315 220 <60
<50
210
120
HL149.12.21
HL149.24.21
12
24
57.5 20.8 7.5 160 115 <60
<50
200
115
HL149.12.43
HL149.24.43
12
24
62.5 43.3 15 78 55 <60
<50
210
120
HL149.12.90
HL149.24.90
12
24
62.5 90.3 15 37 30 <60
<50
150
85

download pdfTypical values at ambient temperature +20°
Tolerance +/- 10%

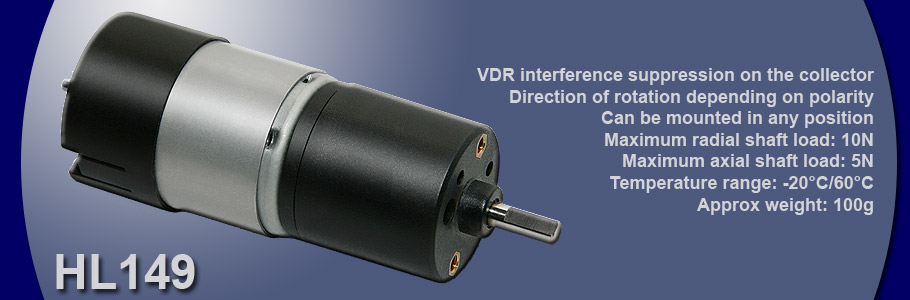

VDR interference suppression on the collector.
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 10N
Maximum axial shaft load: 5N
Temperature range: -20°C/60°C
Approx weight: 100g

HL149
