Technical Data - Series E192 - Planetary Gear Motor - Diameter 40.5mm
| Type | Nominal Voltage (V) |
L (mm) |
Ratio To: 1 |
Max Torque (Ncm) |
Speed No Load (rpm) |
Speed at Max Torque (rpm) |
Current No Load (A) |
Current at Max Torque (A) |
Input Power at Max Torque (W) |
| E192.12.3 E192.24.3 |
12 24 |
86 | 3.66 | 15 | 1100 1100 |
700 770 |
<0.4 <0.2 |
1.70 0.96 |
20.4 23 |
|
E192.12.5 E192.24.5 |
12 24 |
86 | 5 | 20 |
800 830 |
510 575 |
<0.4 <0.2 |
1.75 0.95 |
21 22.8 |
| E192.12.13 E192.24.13 |
12 24 |
93 | 13.44 | 45 | 300 300 |
200 225 |
<0.4 <0.2 |
1.65 0.85 |
19.8 20.4 |
|
E192.12.18 E192.24.18 |
12 24 |
93 | 18.33 | 60 |
218 226 |
155 170 |
<0.4 <0.2 |
1.65 0.84 |
19.8 20.2 |
| E192.12.25 E192.24.25 |
12 24 |
100 | 25 | 90 | 160 166 |
105 118 |
<0.4 <0.2 |
1.75 0.88 |
21 21.1 |
|
E192.12.49 E192.24.49 |
12 24 |
100 | 49.29 | 160 |
82 82 |
58 60 |
<0.4 <0.2 |
1.60 0.85 |
19.2 20.4 |
|
E192.12.67 E192.24.67 |
12 24 |
100 | 67.22 | 220 | 59.5 61.5 |
40 45 |
<0.4 <0.2 |
1.80 0.88 |
21.6 21.1 |
|
E192.12.91 E192.24.91 |
12 24 |
100 | 91.66 | 270 |
43.6 45 |
31 34 |
<0.4 <0.2 |
1.70 0.85 |
20.4 20.4 |
|
E192.12.125 E192.24.125 |
12 24 |
107 | 125 | 300 | 32 33 |
24 26 |
<0.4 <0.2 |
1.32 0.64 |
15.9 15.4 |
|
E192.12.180 E192.24.180 |
12 24 |
107 | 180.75 | 220 |
22 22 |
20 20 |
<0.4 <0.2 |
0.75 0.42 |
9 10.1 |
|
E192.12.246 E192.24.246 |
12 24 |
107 | 246.48 | 300 | 15.2 16.8 |
14.5 15 |
<0.4 <0.2 |
0.87 0.43 |
10.5 10.3 |
|
E192.12.336 E192.24.336 |
12 24 |
107 | 336.11 | 300 |
11.9 12.3 |
11 11.5 |
<0.4 <0.2 |
0.69 0.34 |
8.3 8.2 |
|
E192.12.458 E192.24.458 |
12 24 |
107 | 458.3 | 300 | 9 9,5 |
8.5 9 |
<0.4 <0.2 |
0.54 0.28 |
6.5 6.7 |
|
E192.12.625 E192.24.625 |
12 24 |
107 | 625 | 300 |
6.4 6.6 |
6 6.2 |
<0.4 <0.2 |
0.46 0.23 |
5.5 5.5 |
Typical values at ambient temperature +20°
Tolerance +/- 10%

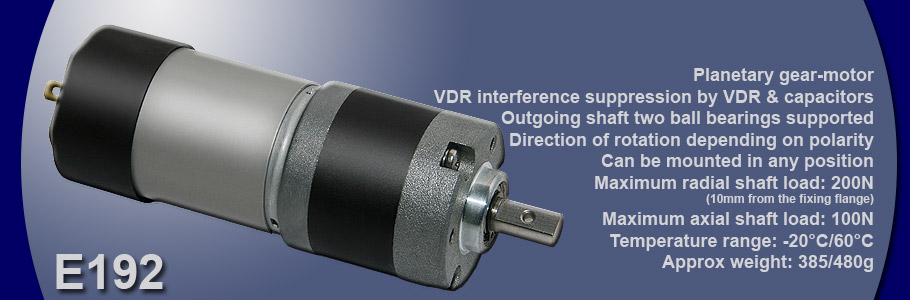

Planetary gear-motor
VDR interference suppression by VDR and capacitors
Outgoing shaft two ball bearings supported
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 200N (10mm from the fixing flange)
Maximum axial shaft load: 100N
Temperature range: -20°C/60°C
Approx weight: 385/480g
