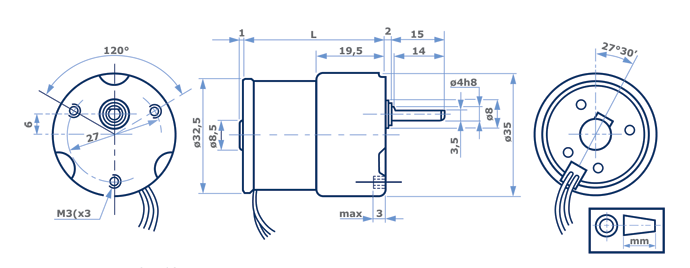

Technical Data - Series BS138F - Spur Gear Motor - Diameter 35mm
| Type | Nominal Voltage (V) |
L (mm) |
Ratio To: 1 |
Max Torque (Ncm) |
Speed No Load (rpm) |
Speed at Max Torque (rpm) |
Current No Load (mA) |
Current at Max Torque (mA) |
| BS138F.6.12 BS138F.12.12 |
6 12 |
40 | 12.25 | 1.5 | 220 | 155 | <30 <20 |
100 55 |
|
BS138F.6.21 BS138F.12.21 |
6 12 |
40 | 21.14 | 2.5 | 125 | 85 |
<30 <20 |
100 55 |
| BS138F.6.36 BS138F.12.36 |
6 12 |
40 | 35.73 | 4 | 73 | 53 | <30 <20 |
95 50 |
|
BS138F.6.72 BS138F.12.72 |
6 12 |
40 | 71.54 | 7 | 37 | 28 |
<30 <20 |
95 50 |
| BS138F.6.149 BS138F.12.149 |
6 12 |
40 | 149.05 | 14 | 18 | 13 | <30 <20 |
95 50 |
|
BS138F.6.208 BS138F.12.208 |
6 12 |
40 | 208.66 | 20 | 13 | 9 |
<30 <20 |
95 50 |
|
BS138F.6.608 BS138F.12.608 |
6 12 |
40 | 608.61 | 50 | 4.3 | 3.3 |
<30 <20 |
90 48 |
|
BS138F.6.1470 BS138F.12.1470 |
6 12 |
40 | 1470.82 | 50 | 1.8 | 1.6 |
<30 <20 |
58 30 |
Typical values at ambient temperature +20°
Tolerance +/- 10%

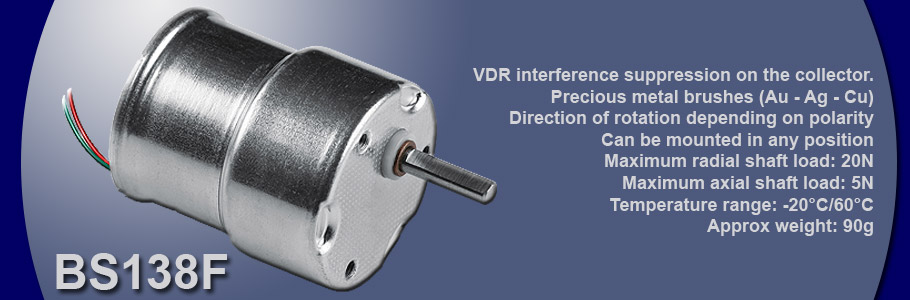

VDR interference suppression on the collector.
Precious metal brushes (Au - Ag - Cu)
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 20N
Maximum axial shaft load: 5N
Temperature range: -20°C/60°C
Approx weight: 90g
