L149

Technical Data - Series B138F - Spur Gear Motor - Diameter 34mm

Type Nominal
Voltage
(V)
L
(mm)
Ratio
To: 1
Max
Torque
(Ncm)
Speed
No Load
(rpm)
Speed at
Max Torque
(rpm)
Current
No Load
(mA)
Current at
Max Torque
(mA)
B138F.6.12
B138F.12.12
6
12
37.5 12.25  1.5 220 155 <30
<20
100
55
B138F.6.21
B138F.12.21
6
12
37.5 21.14 2.5 125 85 <30
<20
100
55
B138F.6.36
B138F.12.36
6
12
37.5 35.73 73 53 <30
<20
95
50
B138F.6.72
B138F.12.72
6
12
37.5 71.54 7 37 28 <30
<20
95
50
B138F.6.149
B138F.12.149
6
12
37.5 149.05 14 18 13 <30
<20
95
50
B138F.6.208
B138F.12.208
6
12
37.5 208.66 20 13 9 <30
<20
95
50
B138F.6.608
B138F.12.608
6
12
37.5 608.61 50 4.3 3.3 <30
<20
90
48
B138F.6.1470
B138F.12.1470
6
12
37.5 1470.82 50 1.8 1.6 <30
<20
58
30

download pdfTypical values at ambient temperature +20°
Tolerance +/- 10%

VDR interference suppression on the collector.
Precious metal brushes (Au - Ag - Cu)
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 20N
Maximum axial shaft load: 5N
Temperature range: -20°C/60°C
Approx weight: 85g

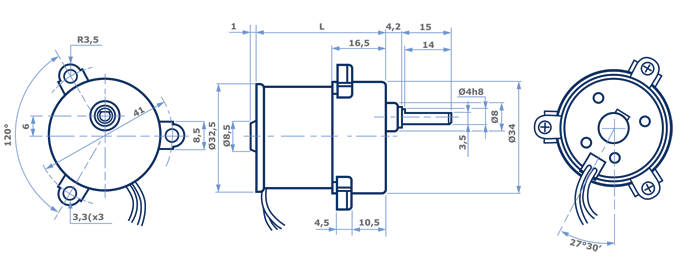

B138F
